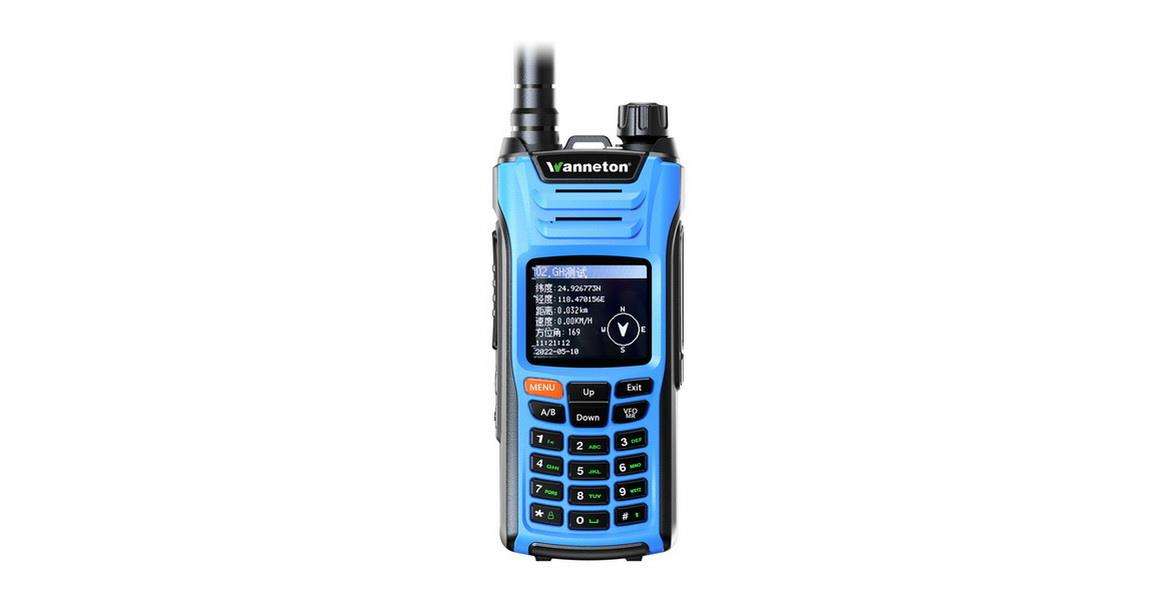

UV8F
FeatureGPSAltitude：Distance between both partiesOne click decodingChinese/English inputSix frequency both optionsFrequency：123-174MHZ,175-220MHZ;230-250MHZ,330-350MHZ;350-400MHZ,400-520MHZ;999 Storage50 Groups CTCSS/105 Groups DCSAuto power-savingComputer programmingLow voltage warningAuto power-sa…
Introduction:
Feature
GPS
Altitude：
Distance between both parties
One click decoding
Chinese/English input
Six frequency both options
Frequency：123-174MHZ,175-220MHZ;
230-250MHZ,330-350MHZ;
350-400MHZ,400-520MHZ;
999 Storage
50 Groups CTCSS/105 Groups DCS
Auto power-saving
Computer programming
Low voltage warning
Auto power-saving
Non-standard sub sound
VOX
Launch timeout limit TOT
Scaning/Sweep frequency function
Special signaling(frequency hopping)
Display individual names in both Chinese and English
Parameters:
GENERAL：
Frequency：123MHZ-520MHZ
Storage：999
Channel space：25/12.5KHZ
Input voltage：7.4V DC
Battery capacity：4800mAh
Battery life：About 14hours
Standby：≤ 65mA
Receiver：≤ 450mA
Transmitter：≤ 1.8A @Hi power, 650mA@low
Frequency stability：±2.5ppm
Frequency stability：-30℃ to +60℃
Antenna impedance：50Ω
Size：122*65.5*38mm
Weight：252g

TRANSMITTER：
Transmissiom output power：8W
Modulation：16K0F3E@25KHz, 11K0F3E@12.5KHz
Spurious emission：-36dBm＜1GHz, -30dBm＞1GHz
SNR：45dB@25KHz, 40dB@12.5KHz
Radio distortion：≤5%
Modulation limited：±5.0KHz@25KHz, ±2.5KHz@12.5KHz
Adjacent Channel Power：70dB@25KHz, 60dB@12.5KHz
Radio response：+1 ~3dB

RECEIVER：
Receiver sensitivity：0.25uV（12dB SINAD)
Adjacent channel selectivity：≥60dB@25KHz，≥55dB@12.5KHz
Adjacent channel selectivity：≥60dB@25KHz，≥55dB@12.5KHz
conducted spurious emission：≤５7dB@25KHz，≤-57dB@12.5KHz
SNR：≥45dB@25KHz，≥40dB@12.5KHz
Audio output power： 1W@16 ohms
Radio distortion： ≤5%
Radio response： +1 ~ -3dB
