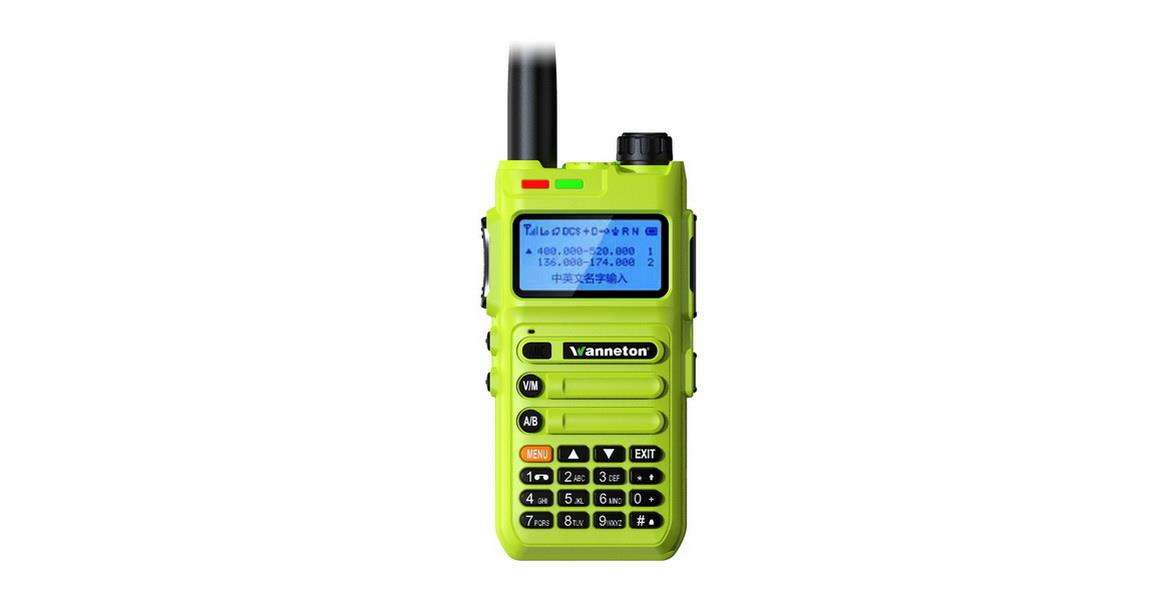

UV5F-PLUS
Feature:Full band、One click decoding、Frog chirping at the end、USB Charging、Chinese/English input、Flash Light function、Radio function、AM aviation reception、Frequency: Full band:136-520MHZ、128 Storage、Chinese/English language prompts、Radio function、Wide/Narrow band、Interference frequenc…
Introduction:

Feature

Full band、One click decoding、Frog chirping at the endUSB Charging、Chinese/English input、Flash Light function、Radio  functionAM aviation reception、Frequency: Full band:136-520MHZ、128 Storage、Chinese/English language prompts、Radio  function、Wide/Narrow bandInterference frequency more confidential call、Auto power-savingSpecial signaling(frequency hopping)、VOX Make calls without pressing the PPT

Parameters:
GENERAL:
Frequency:136-520MHz
Storage:128個
Channel space:25KHz/12.5KHz
Input voltage:7.4VDC
Battery capacity:6000mAh
Battery life:About 14 Hours
Standby:≤65mA
Receiver:≤450mA
Transmitter:≤1.8A@High power,650mA@Low power
Frequency stability:±2.5ppm
Work temperature:-30℃to+60℃
Antenna impedance:50Ω
Size:121X61X33mm
Weight:220g

TRANSMITTER:
Receiver sensitivity:0.25μV(12dB SINAD)
Adjacent channel selectivity:≥60dB@25KHz,≥55dB@12.5KHz
Adjacent channel selectivity:≥60dB@25KHz,≥55dB@12.5KHz
conducted spurious emission:≤-57dB@25KHz,≤-57dB@12.5KHz
SNR:≥45dB@25KHz,≥-40dB@12.5KHz1W@16ohms
Audio output power:≤5%
Radio distortion:+1~-3dB
Audio response(300-3000Hz):+1~3dB

RECEIVER:
Transmissiom output power:≤10W
Modulation:16K0F3E@25KHz,11K0F3E@12.5KHz
Spurious emission:-36dBm<1GHz,-30dBm>1GHz
SNR:45dB@25KHz,40dB@12.5KHz
Radio distortion:≤5%
Modulation limited:±5.0KHz@25KHz,±2.5KHz@12.5KHz
Adjacent Channel Power:70dB@25KHz,60dB@12.5KHz
Audio response(300-3000Hz):+1~3dB
